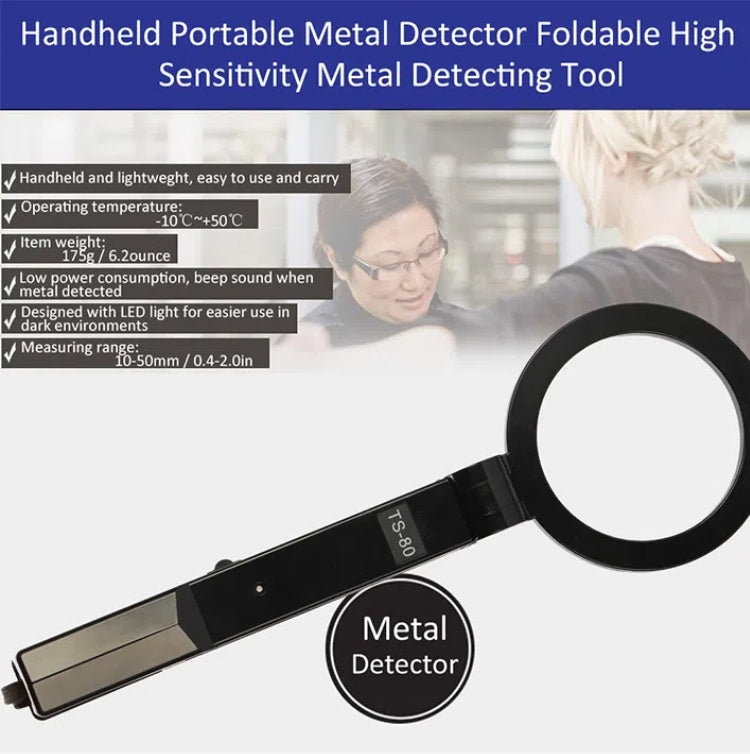

1、 Product Introduction:

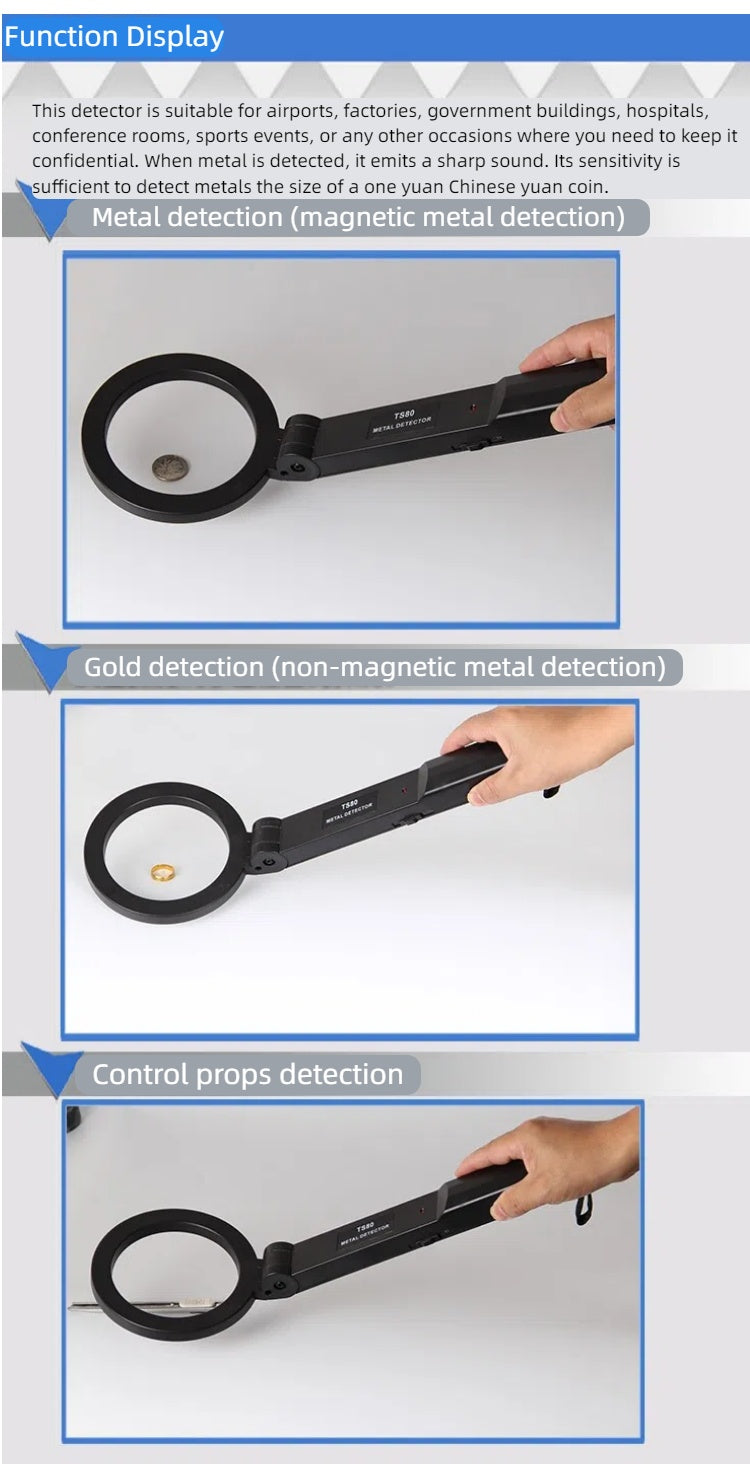

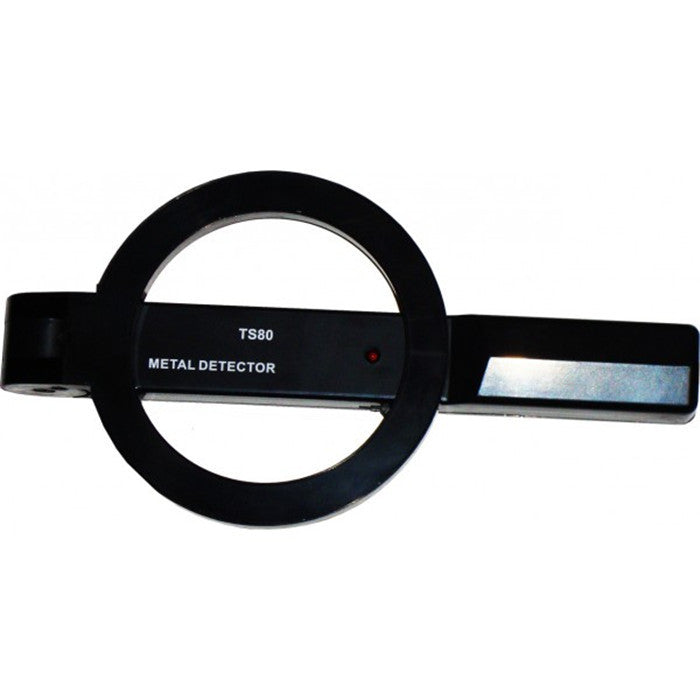

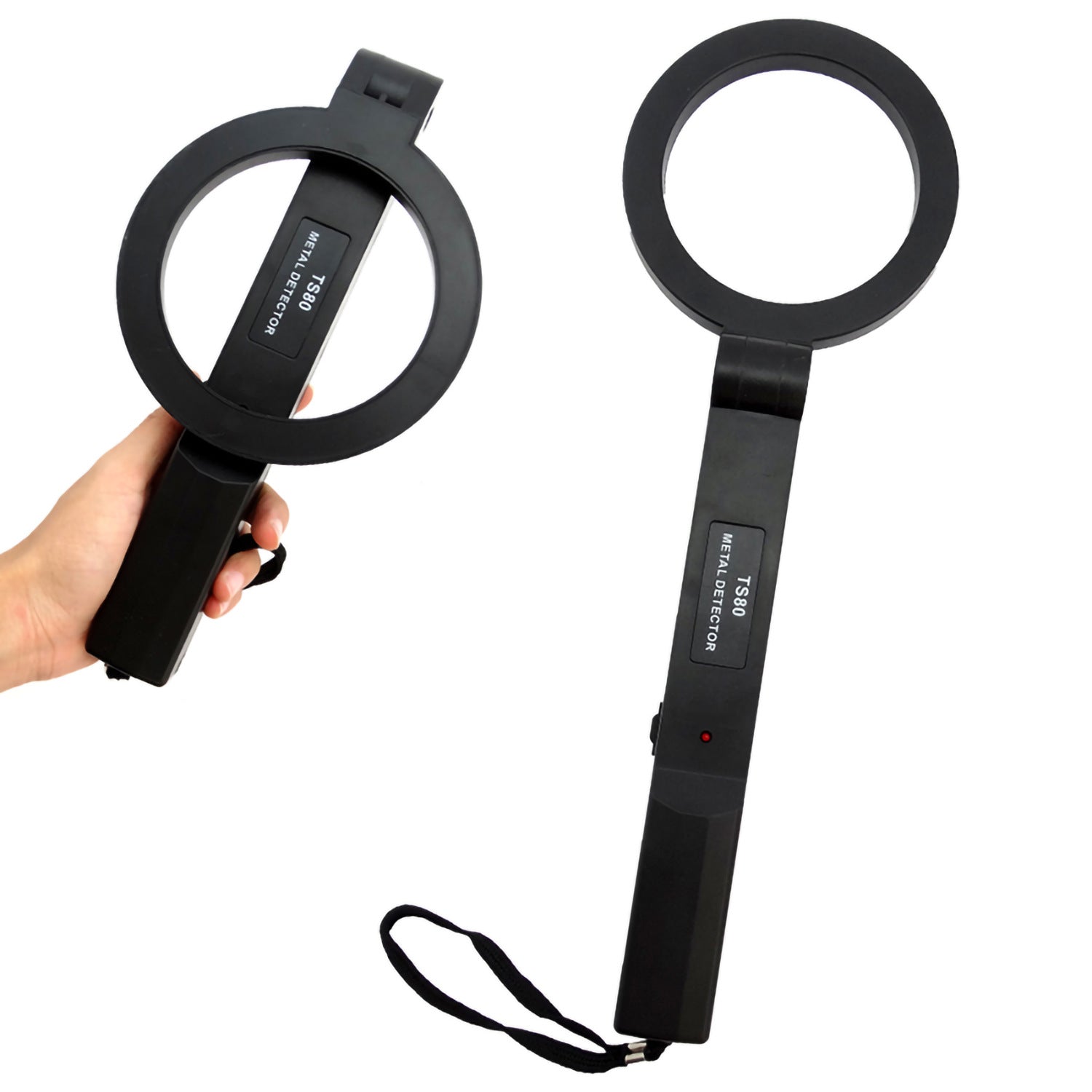

This detector is suitable for security inspections of security departments such as airports, stations, docks, prisons, customs, and border defense, as well as quality inspections of medical, food, and commercial systems; And the detection of precious metals (such as gold and silver jewelry factories) and safety inspections of important places such as sports fields. The TS80 series metal detector is used to check whether there are weapons or weapon components hidden in the human body, handheld luggage, mail, and packages. Can detect the above-mentioned items and other metal objects hidden in walls, inside wall panels, voids, and soil.
2、 Detection distance:
1. The vertical detection distance of the pin is 20mm
2. MODEL77 pistol detection range 160mm
3.72 Type Plastic Anti Infantry Dilei Detection Range 25mm

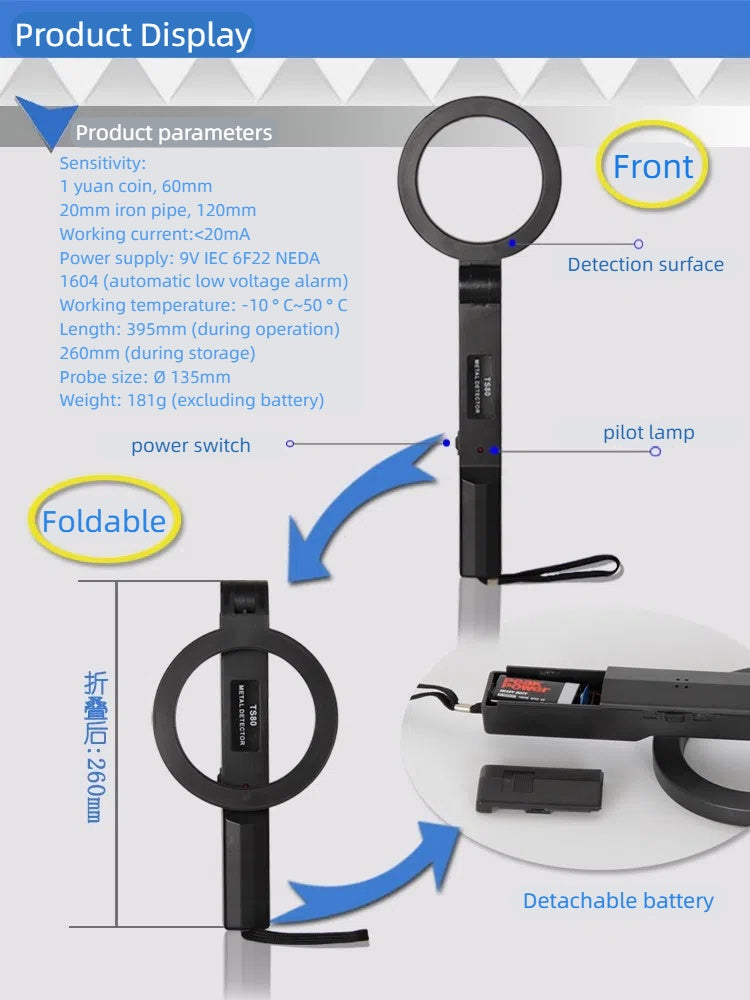

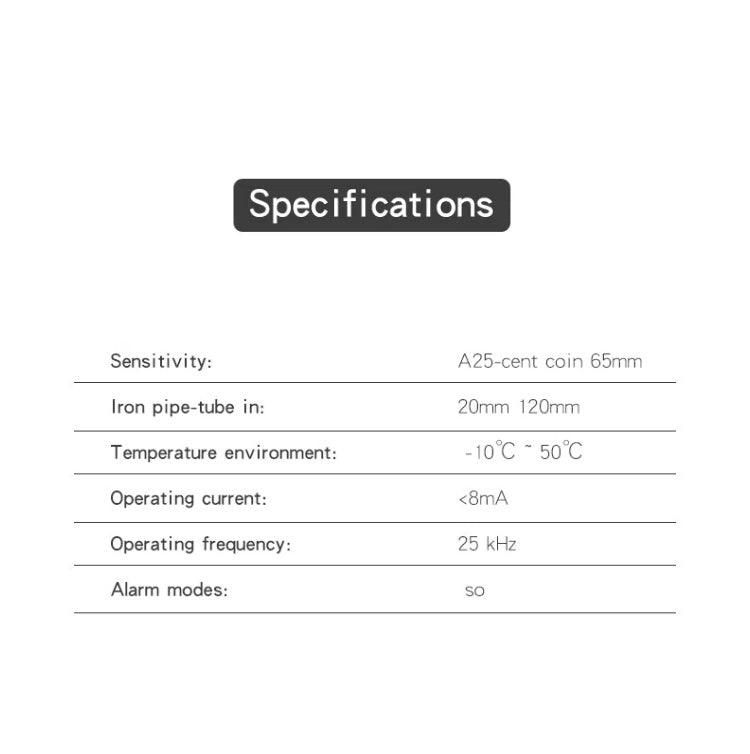

3、 Technical parameters:
Detection sensitivity: The detection distance for one yuan RMB coin is ≥ 5cm
Alarm method: synchronized sound and light, vibration alarm

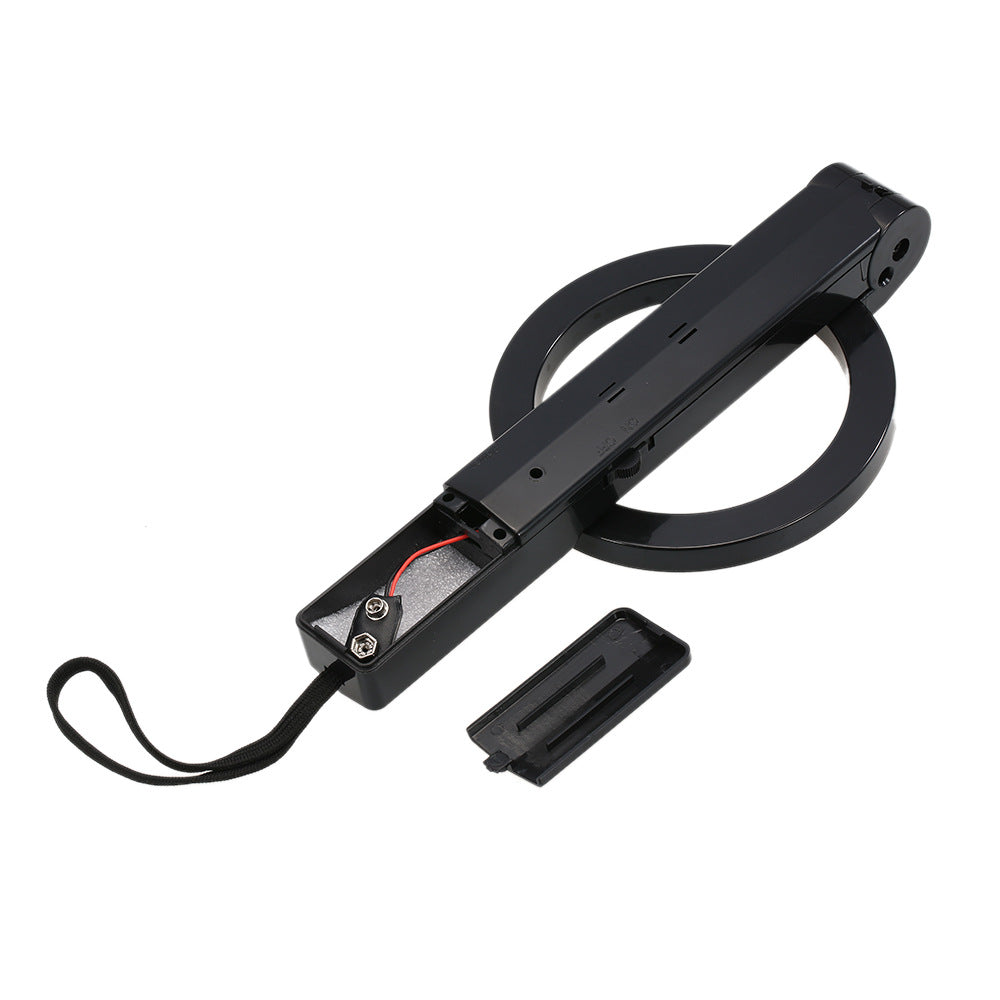

Power supply: 9-volt battery (6F22ND)
Power consumption: 220mW
Static current: less than 13mA
Working current: Sound and light less than 56mA, vibration less than 90mA
Working temperature: 0 ℃ -50 ℃

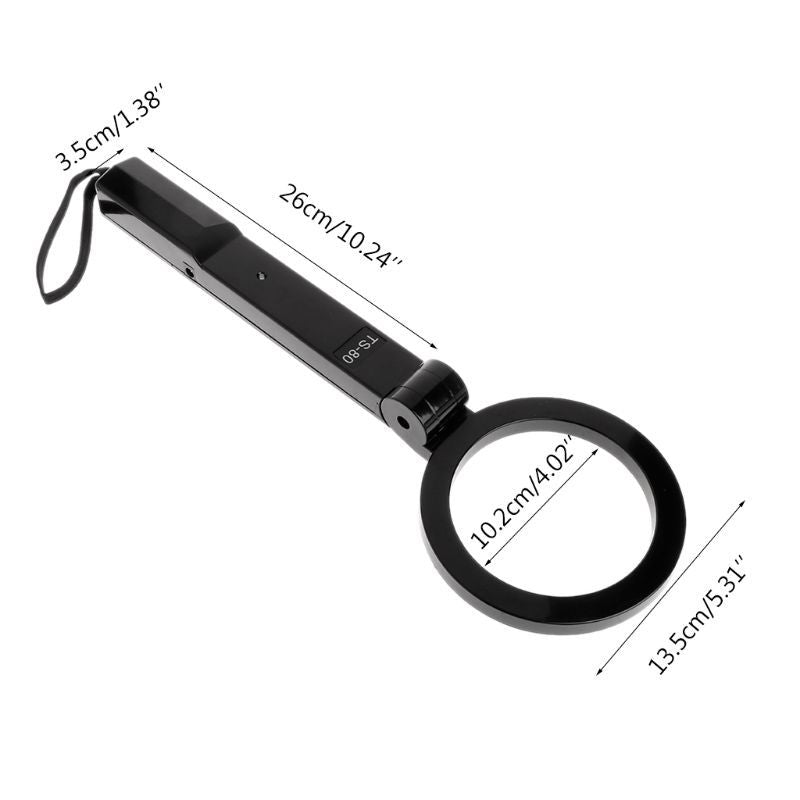

Dimensions: 350 * 140 * 45mm
Net weight: 182g
Gross weight: 286g
Color box size 365 * 158 * 54mm
Packaging size: 54 * 37.5 * 33cm (20 pieces/box, 7.0kg/box)
4、 Purpose of detector
1. Security detection and inspection of entrances and exits at airports, stations, and docks;
2. Security inspections by customs, public security, border defense, and security departments;
3. Quality inspection of pharmaceutical and food commercial systems;
4. Inspection of nails, important places, and safety inspections during sports events in the wood factory;
5. Precious metal testing, such as gold and silver jewelry factories and electronics factories.
